Product:P10-32X96R-Indoors
Category:P10mm
Description:Model Number: P10-3296R Usage: indoor Display color: red/blue/yellow/pink/green/white color

Specifications

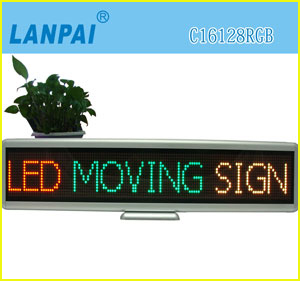

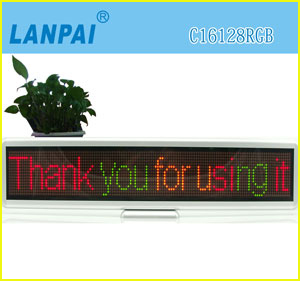

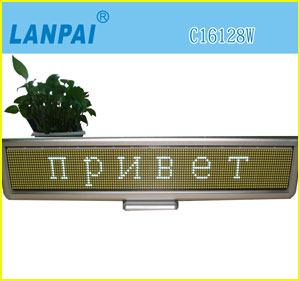

Led desktop moving signs
1.Easy operation and install
2,support world language
3.Custom size/ color







LANPAI  P10 indoor/outdoor led display screen led desktop display





Technical parameter
Unit board Pixel pitch 10mm
Resolution of module 32*96dots
Density of pixel 10000dots/m2
Pixel configuration LED546 1W (Red, Amber, Yellow, Green, White)
Main Technical parameter Red wavelength 625±2nm
Green wavelength 525±2nm
Blue wavelength 470±2nm
Colors 16777216
Best viewing distance 10-300m
Horizontal/Vertical Viewing angle 120 degree/60 degree
Gray scale 16bits per color
Color temperature 6500k
Brightness More than 4000cd/sqm
IP grade  IP56
Frame frequency 60HZ
Refresh frequency ≥2000HZ
Control method Synchronization/Asynchronization
Drive method 1/4 Scan
Temperature Storage:-40°C-+85°C
Working:-40°C-+65°C
Operating ambient humidity 10%—95%RH
Earth leakage current < 2mA
Defects rate. ≤0.00001(Led display line standard<0.0001)
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance ≤0.6mm
MTBF More than 10,000 hours
Life span More than 100,000hours
Power Operating voltage AC110V/220V±10%
Maximum/Average power consumption 1100/600w/m2
Current ≤20mA(single LED)
Power switch Automatic switch
Control system CPU Pentium4 or above
Signal Input Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
Controlling system main controller card+optical fiber transmission
Control method Asynchronization
Systems operating platforms WinXP,Win2000,Vista, Win7 etc.



After-sale service:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.
